WARNING! Assembled platform will have exposed motors moving parts. Never operate it with small children around or use optional protection cover.
Please check and if needed put back the plugs for the power to the motors and sensors they must match the colors or numbers. This is very important. Never change wiring. Mixed of colors in connectors can damage the motors and platform controllers. If you think that you need to reverse one or more motors, do it in SRS software.
If your control box doesn’t have colored motors plugs then:
The right Motor is the brown plug and Motor 1,
The left Motor is the black plug and Motor 2
Do not put ANY controllers on the platform before it is completely tested and proven to be working as desired. Once assembly is complete, attach the seat ONLY, i.e. no other items what-so-ever. When you have ensured proper behavior only then start to add controllers one by one, but completing movement tests with a person seated in the pilot seat after the addition of each controller to platform weight.
For majority of frames you need to slide the mover inside, not on top of it. Motors always should be facing back. As an example here is the PlaySeat EVO frame view.

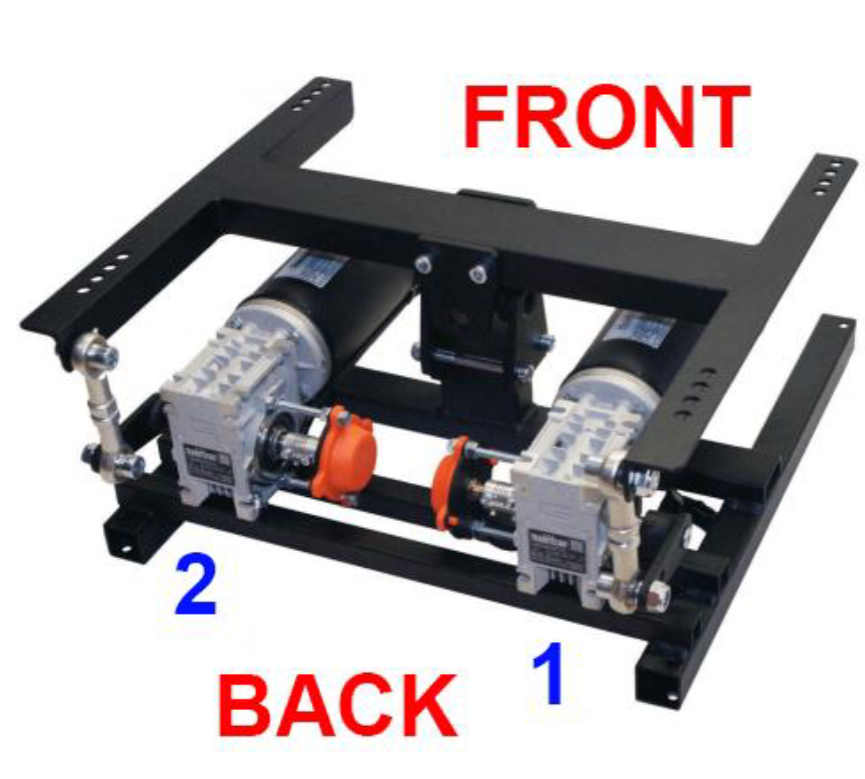

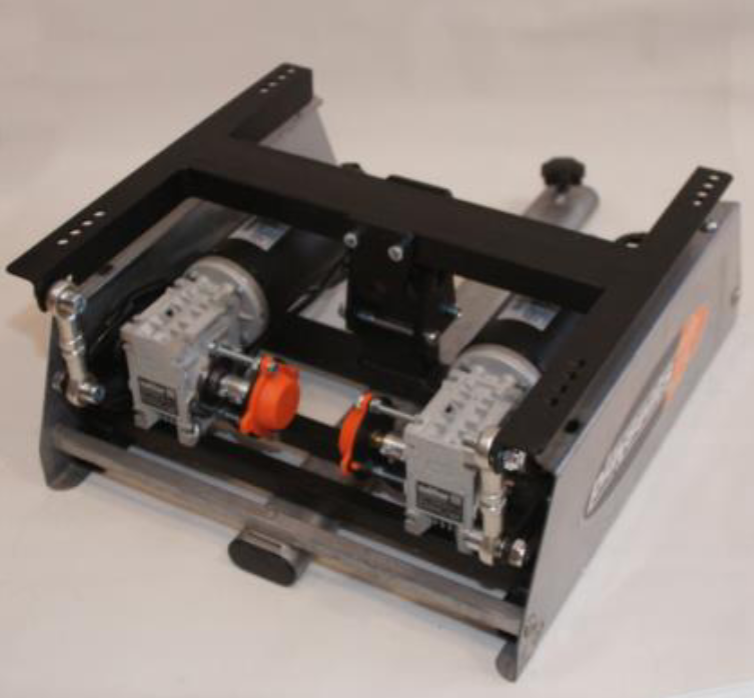

From the back:

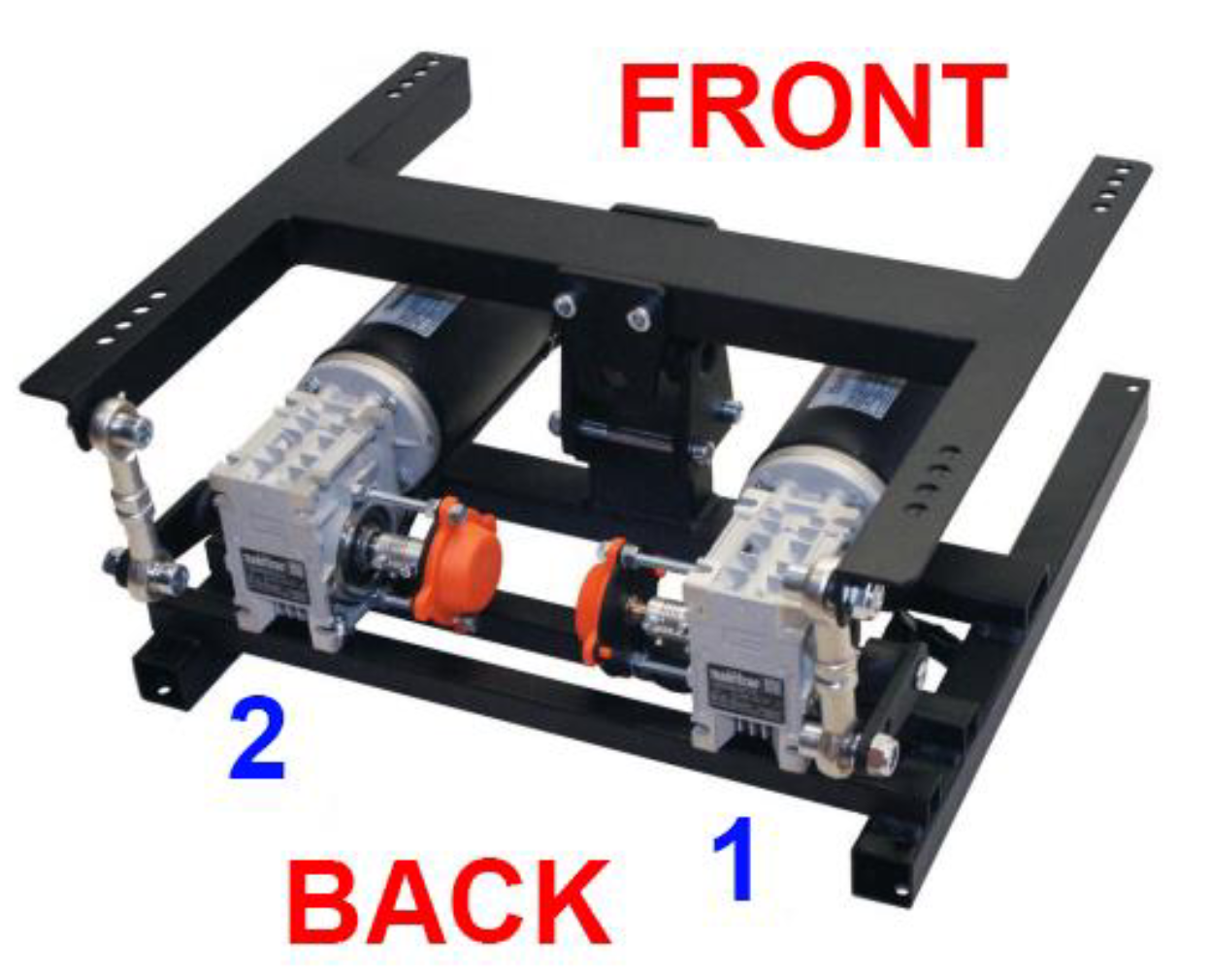

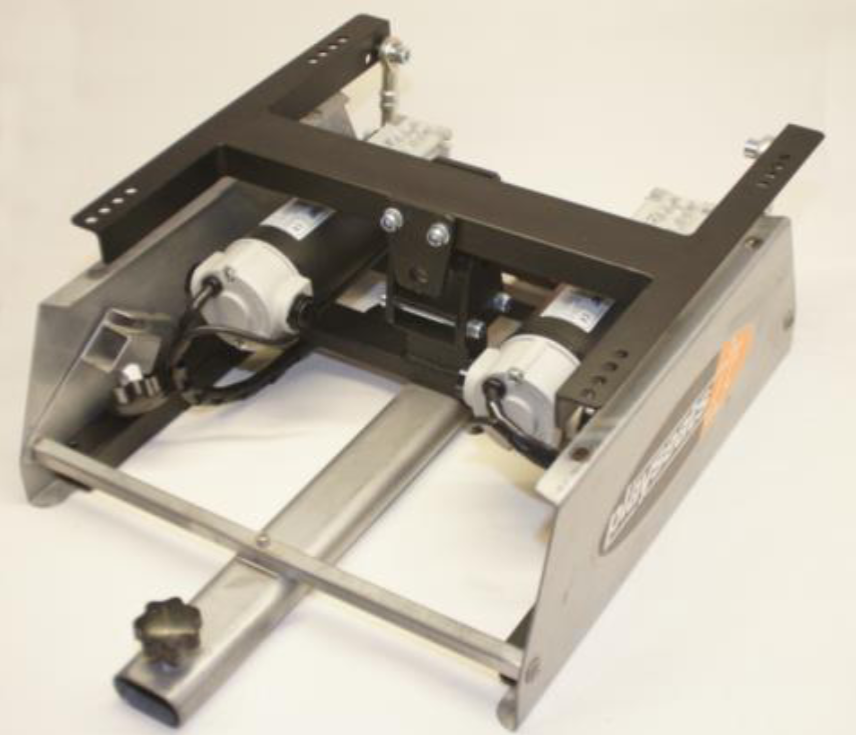

And from the front:
If you are not sure what bolts to use, here are links to a 1:1 scale template for Letter and A4 sized paper, ensure you print without extra borders or spacing:
- For US Letter Paper : https://dofreality.com/hardware_template_Letter.pdf
- For A4 Paper : https://dofreality.com/hardware_templateA4.pdf
Never ever leave platform powered unattended and or when not in use. The motors are constantly performing micro adjustments. If they overheat (above 70°C) they may lose power.
