Playing a Game (4.5)

Playing a Game (4.5)

Sim Racing Studio (SRS) will automatically connect to the game once you have started the game, although you MUST have SRS running when you open the game in order to engage the platform.

Note that some games require you to start a race to connect. Some games connect from the main menu.

There are 3 game statuses that will tell you if everything is ok or not. Check the PROFILE IN USE box on the top right of SRS.

• STANDBY: Game not running
• GAME RUNNING: Game is detected no telemetry to move platform has yet been received. For Some games,this is NORMAL as they only send telemetry once you are on the track or in the air. In this status, you also unlocked the TUNING -> MOTION settings. Now you can make changes to the tuning parameters (See below).
• TELEMETRY DATA: All good. If the MOTIONBOX status is green and SRS is in this status, the platform will be moving for this game. Make Sure platform boxes are ON

• Intellibox is for Wind (if you didn’t buy the wind accessory, you won’t have this),
• Led and Tach are used if you bought an LED or Tachometer as a separate accessory for your racing system.
• Shakebox is for the buttkicker.

Try to mouse over the status icon to get more info.

Tuning (4.6)

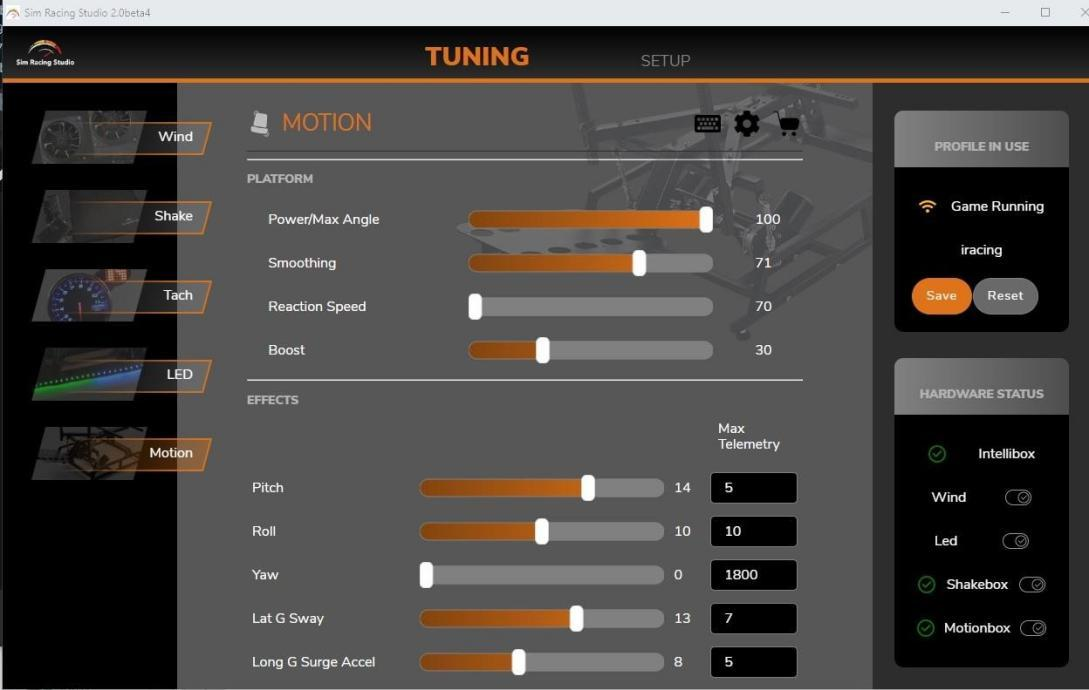

Sim Racing Studio (SRS) has been tuned by our team to provide a great experience out of the box. If you want to more-tune the motion, you can do it simply by changing the sliders in SRS by going TUNING -> MOTION. This can be done ONLY while the game is running. If the game is running, SRS will automatically select this game and or vehicle.

Once you have adjusted your tuning, click SAVE and next time you open the game (along with SRS), these settings will be loaded automatically.

For more profiles visit Motion Profiles - Non Actuator | Sim Racing Studio
